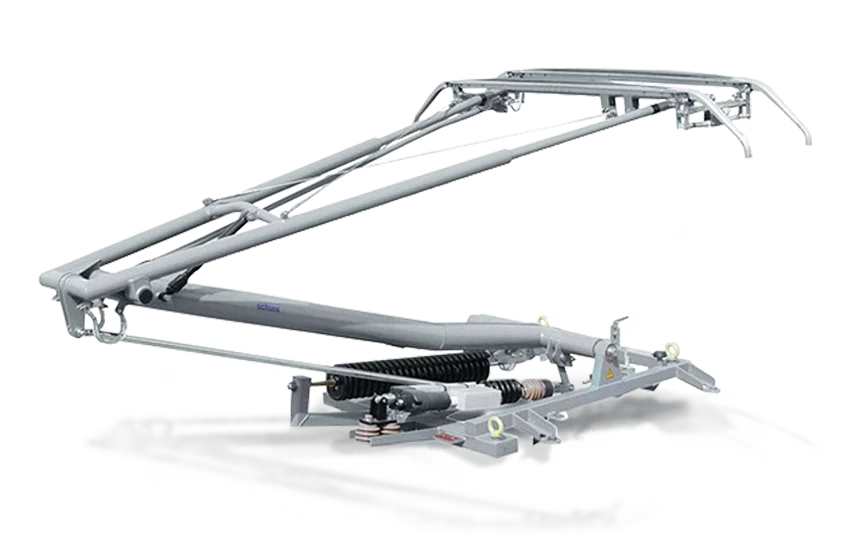

Pantograph SBE for light rail

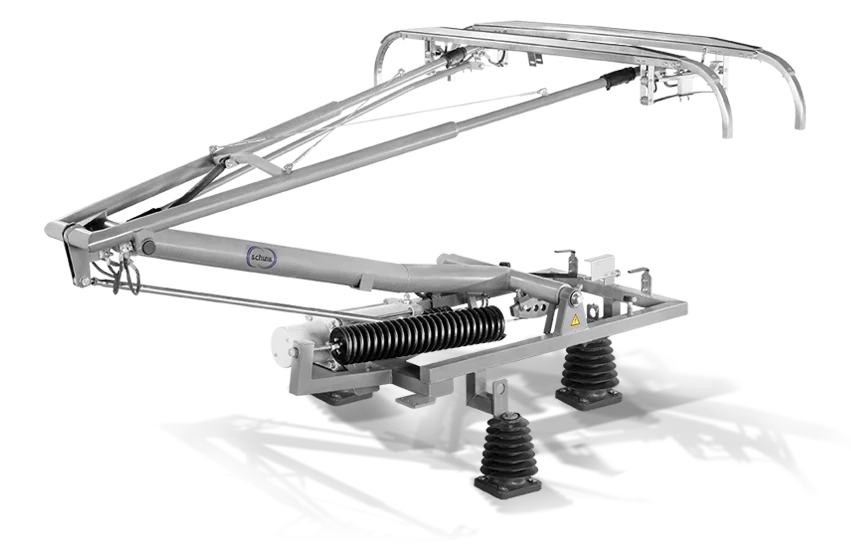

 Pantograph SBF light rail

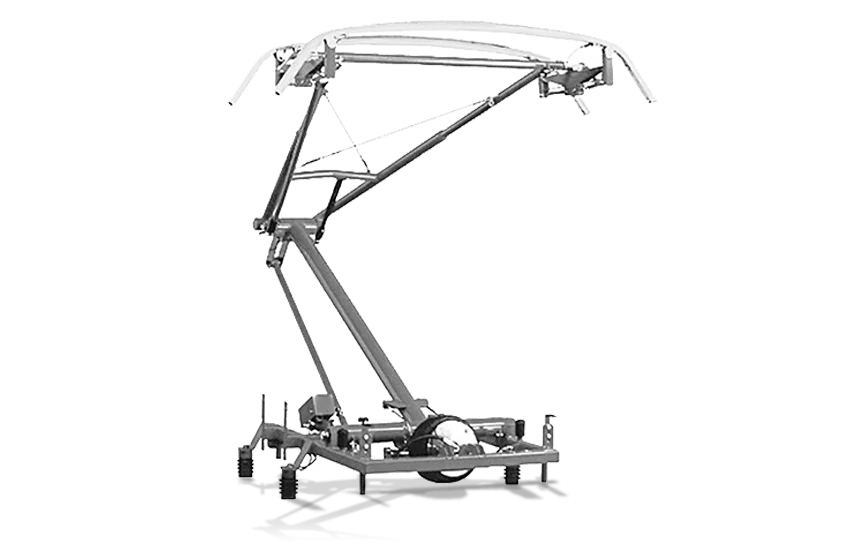

 Pantograph SBL light rail

Pantograph Light Rail (SBE, SBF, SBL)

Low-wear materials, technologically leading systems and our know-how to always provide the best connection - our pantographs for local transport ensure that everything remains reliably on the move. Individually sprung collector strips provide permanent and reliable contact with the overhead line. This allows you to benefit from maximum operational safety with minimum maintenance. Our pantographs for mass transit are available in three concepts: as SBE with integrated and electrically insulated spindle drive, as SBF with pneumatic lowering drive and as SBL with air bellows drive. Individual customer adaptations are of course possible at any time. Benefit from optimally coordinated complete systems with top-quality sanding strips, comprehensive accessories and customer service that supports you in all questions.

You benefit from these advantages:

  • Compact, reliable and economically efficient design
  • Individual customer adaptations possible at any time
  • Current collector SBE: Integrated and electrically insulated spindle drive lowers the current collector at the push of a button
  • Pantograph SBF: Robust design of the pneumatic lowering drive
  • Pantograph SBL: Air bellows drive replaces drive spring and lowering cylinder on vehicles with compressed air

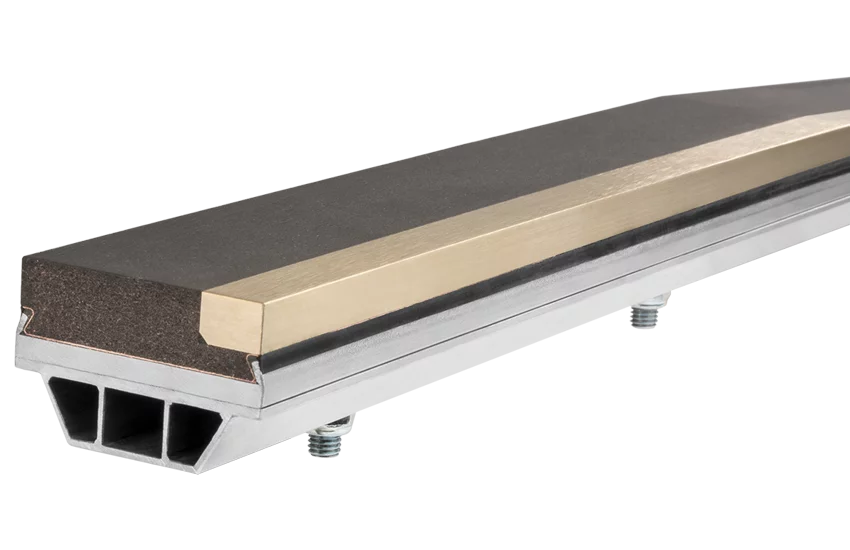

  • Optimally coordinated overall system with Schunk sanding strips in top quality
  • Worldwide after-sales service with original components from the manufacturer
