Pantograph Metro

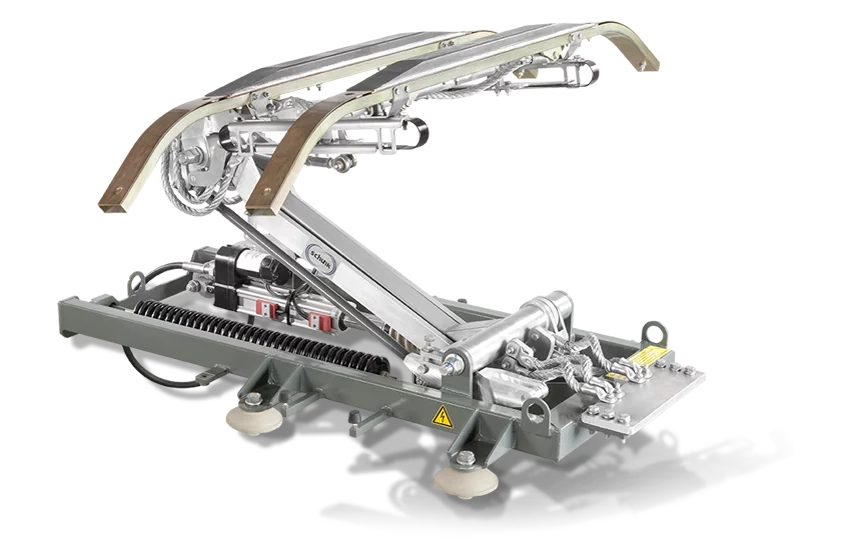

Pantograph Metro (SBE, SBL)

Metros and streetcars must not be allowed to break down, as this would have far-reaching consequences for the entire timetable. This is why robust and reliable components are so important. Like our Metro pantographs, which are already in use worldwide and which we offer you as two concepts: As SBE with spring-electric drive for lowering the pantograph and as SBL with air bellows drive, which replaces the drive spring and lowering cylinder. Individual customer adaptations are of course possible at any time. Individually sprung collector strips provide additional safety through their permanent and reliable contact with the overhead line. Benefit from optimally matched complete systems with top-quality collector strips, comprehensive accessories and customer service that supports you in all questions.

You benefit from these advantages:

  • Particularly compact design for safe use in confined tunnels
  • Pantographs with bellows drive or electrical lowering drive
  • Permanent and reliable contact with the overhead line through individually sprung collector strips
  • Individual customer adaptations possible at any time
  • Pantograph SBE-Metro: with spring electric drive
  • Pantograph SBL-Metro: with air bellows drive
  • Maximum operational reliability with minimum maintenance
