Ultrasonic welding solution by Schunk Sonosystems for IGBT power modules with welded power contacts

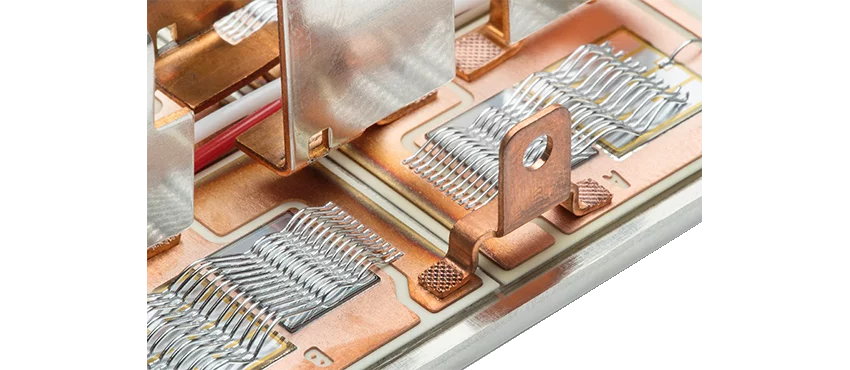

IGBT power module with ultrasonically welded power contacts

Since there is no frame module in this application, a fixture is used during the welding process.

Features:

  • Thickness: 1 mm
  • Welding area: 4 x 4 mm
