Ultrasonic welding solution by Schunk Sonosystems for standard IGBT modules in industrial applications

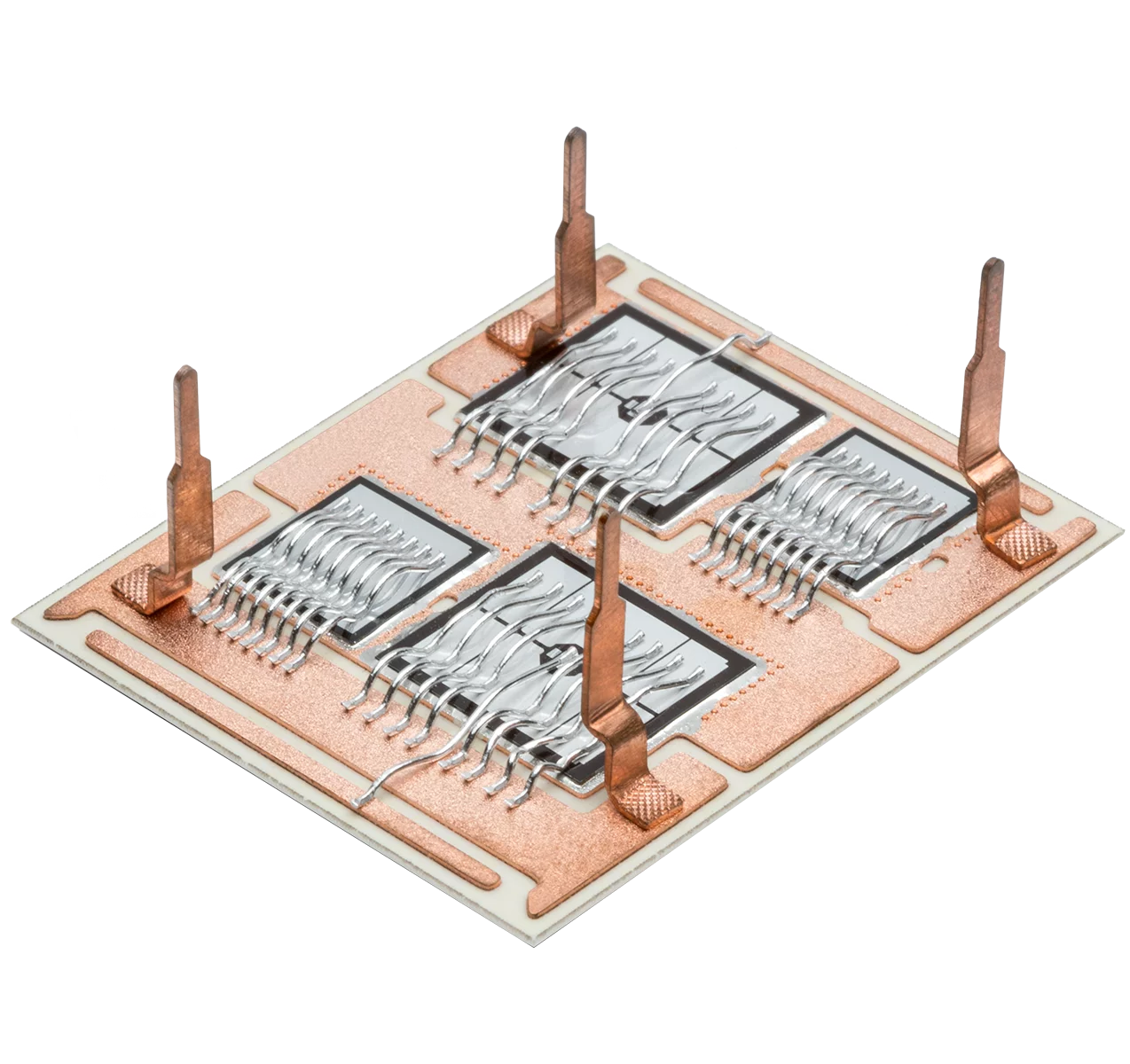

IGBT module for industrial applications

Copper terminals on DBC substrate.

Features:

  • Cu DBC: 0,8 mm in total; 0,3 mm Cu/Ag
  • Thickness of terminals: 1,0 mm
  • Foot size: 2,6 x 3,5 mm
Contact request
All about us
All about us

Market and innovation leader for ultrasonic metal welding

Add

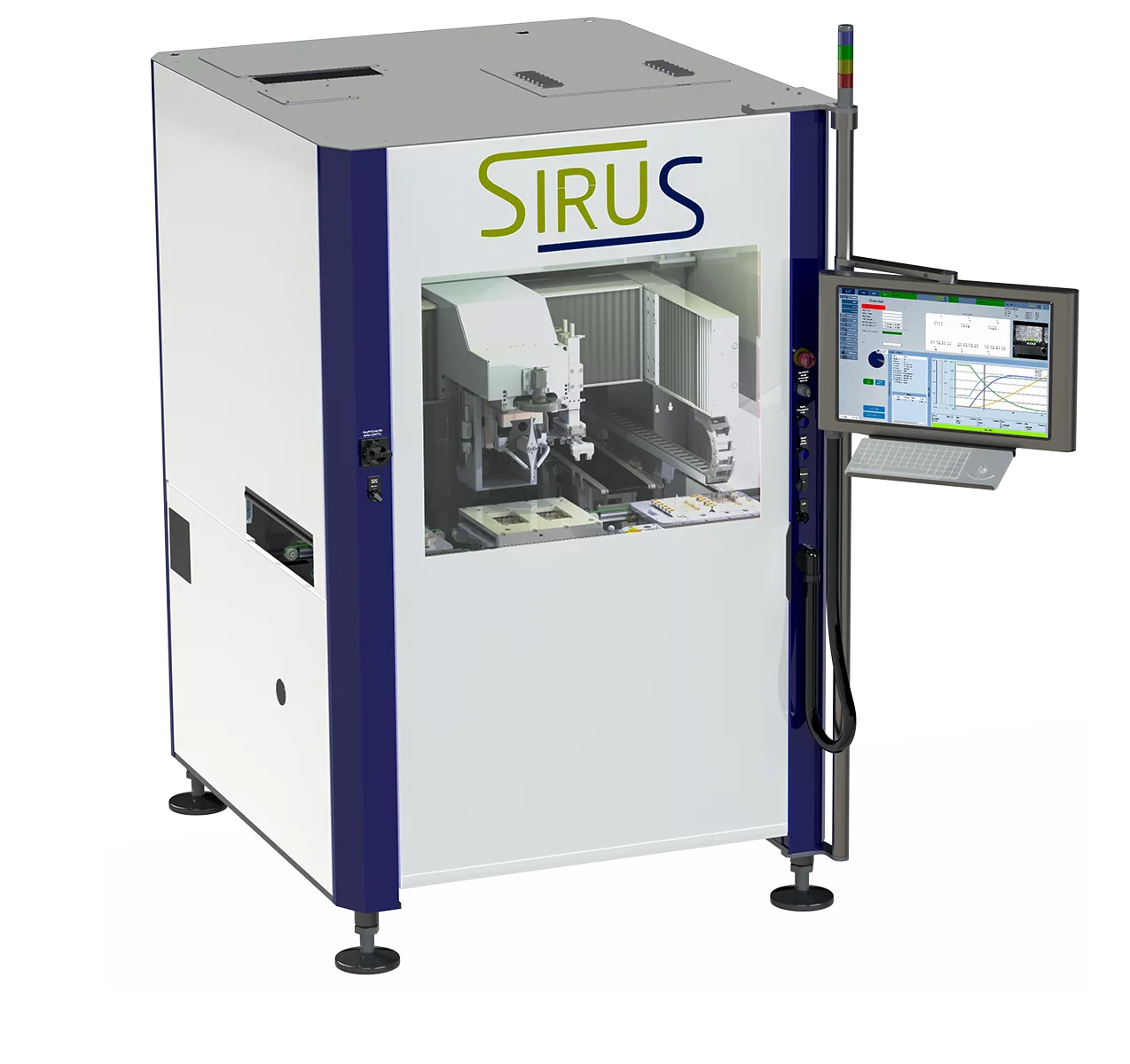

Power Electronics - SIRUS
